LED SOLAR PAVEMENT MARKERS MK6
Curb Lighting Wall lighting Day & Night visibility
CHARACTERISTICS
Resists 16 tons
Life span 100,000 hours
12 or 24 volts
BENEFITS
elf illuminating
Esthetic
Audible noise warning

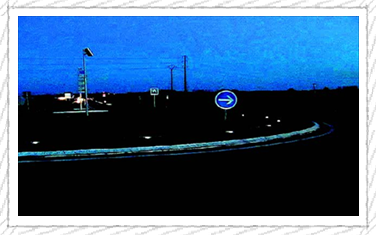

All applications Illuminate roundabouts & dangerous curbs with absolute visibility
Resists 16 tons
Life span 100,000 hours
12 or 24 volts
BENEFITS
elf illuminating
Esthetic
Audible noise warning
All applications Illuminate roundabouts & dangerous curbs with absolute visibility
DESCRIPTION
borders, approaching pedestrian passageways, highway exits and intersections.
MK-6 Markers stand apart from classic road markings by utilizing
solar energy as its power source and having the simplicity to choose how bright the marker should be and how it flashes, even if a sustained burn is required.
MK-6 markers are a self concealed L.E.D. marker
for all types of roadways such as rotaries, dangerous curbs, toll booths,borders, approaching pedestrian passageways, highway exits and intersections.
MK-6 Markers stand apart from classic road markings by utilizing
solar energy as its power source and having the simplicity to choose how bright the marker should be and how it flashes, even if a sustained burn is required.
BENEFITS
Low tension 0.4 watt, 1 watt and 3 watt LED markers are visible from 360° which is ideally suited for round
about markings providing absolute day & night time
visibility.
MK-6 markers function either
in auto synchronized flash
mode or continuous mode working
proficiently in sunny areas as
well as in darker areas.
A safe solution to urban lighting installations in case of
breakdown.
Available light sensor technology for automatic
functioning.
TECHNICAL
Function power: 12 or 24 watt
Low tension cable with a "Clip and Go" connecting system in which no specific tooling is required.
Low tension 0.4 watt, 1 watt and 3 watt LED markers are visible from 360° which is ideally suited for round
about markings providing absolute day & night time
visibility.
MK-6 markers function either
in auto synchronized flash
mode or continuous mode working
proficiently in sunny areas as
well as in darker areas.
A safe solution to urban lighting installations in case of
breakdown.
Available light sensor technology for automatic
functioning.
TECHNICAL
Function power: 12 or 24 watt
Low tension cable with a "Clip and Go" connecting system in which no specific tooling is required.
Long term applications
MK-6 technology is protected inside a toughened glass shell
offering outstanding L.E.D. long term light transmission and
exceptional wear resistance designed to adapt and
respond to the future demands of illuminating road marking
technology.
MK-6 technology is protected inside a toughened glass shell
offering outstanding L.E.D. long term light transmission and
exceptional wear resistance designed to adapt and
respond to the future demands of illuminating road marking
technology.
MK-6 markers
are an excellent solution to green long term road illumination technology.
Power
MK-6 markers can be independently powered using a
central solar energy power system using panels and accumulators. Alternatively a direct hard wire to on site power source may be used
MK-6 markers can be independently powered using a
central solar energy power system using panels and accumulators. Alternatively a direct hard wire to on site power source may be used
Other applications:
Pedestrian & Industrial Pathways
Airports
Bus Stops
Railways
Parks
Dockyards
Pedestrian & Industrial Pathways
Airports
Bus Stops
Railways
Parks
Dockyards
Leisure Areas
Ships
Landscaping
Driveways
Loading docs
MK6

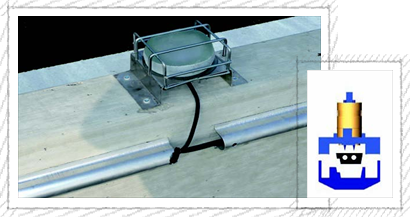

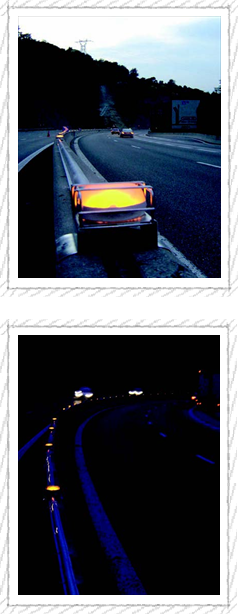

MARKERS INSTALLATION ON CONCRETE BARRIERS
INSTALLATION
Recommended installation :
1. Coring the concrete barrier ¾" deep x 4¾"
wide (20mm x 120 mm of diameter)
2. Drilling 1" diameter at the core center and
piercing the concrete barrier. (25mm)
3. Connect the stud to the supply cable which is
set behind the concrete barrier.
4. The central power can be provided by a solar
panel or by connecting to a local power
source.
|
Technical data
|
|
|
MK6
|
Toughened glass shell
|
|
LED Quantity
|
1 LED
|
|
LED Color
|
Most all colors available
|
|
Lifespan
|
100 000 hours
|
|
Light power
available
|
0.4 watt
1 watt
3 watts
|
|
Mechanical
resistance
|
> 16 tons
|
|
Power Function:
|
12 or 24 Volts
|
|
Power
|
It is necessary to have a central power
supply: Solar or local power source.
Each stud must be connected to the
supply
cable.
|
|
Installation
|
Embedding into surface by core drilling.
|
|
Diameter of
drilling
|
¾" x 4¾" in depth (120mm x 25mm)
|
|
Recommended
glue
|
Epoxy resin
|
|
Recommended
distances
between each stud
|
Superior to 6 Yards on exit highway
Superior to 6 yards on roundabouts
Superior to 13 yards on dangerous turns
|
|
Studs connection
|
Quick clip connection system (without
any specific tooling)
|
